Some Examples of Custom Neutron Generators

Examples of custom generators that were developed for niche applications are given below.

Generator type	Type and date built	Specifications

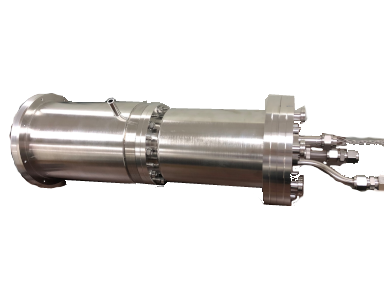

	D-T Bipolar (small spot) Date: 2024	Yield: 4x10⁹ n/s D-T Spot size: 2.3 to 3mm

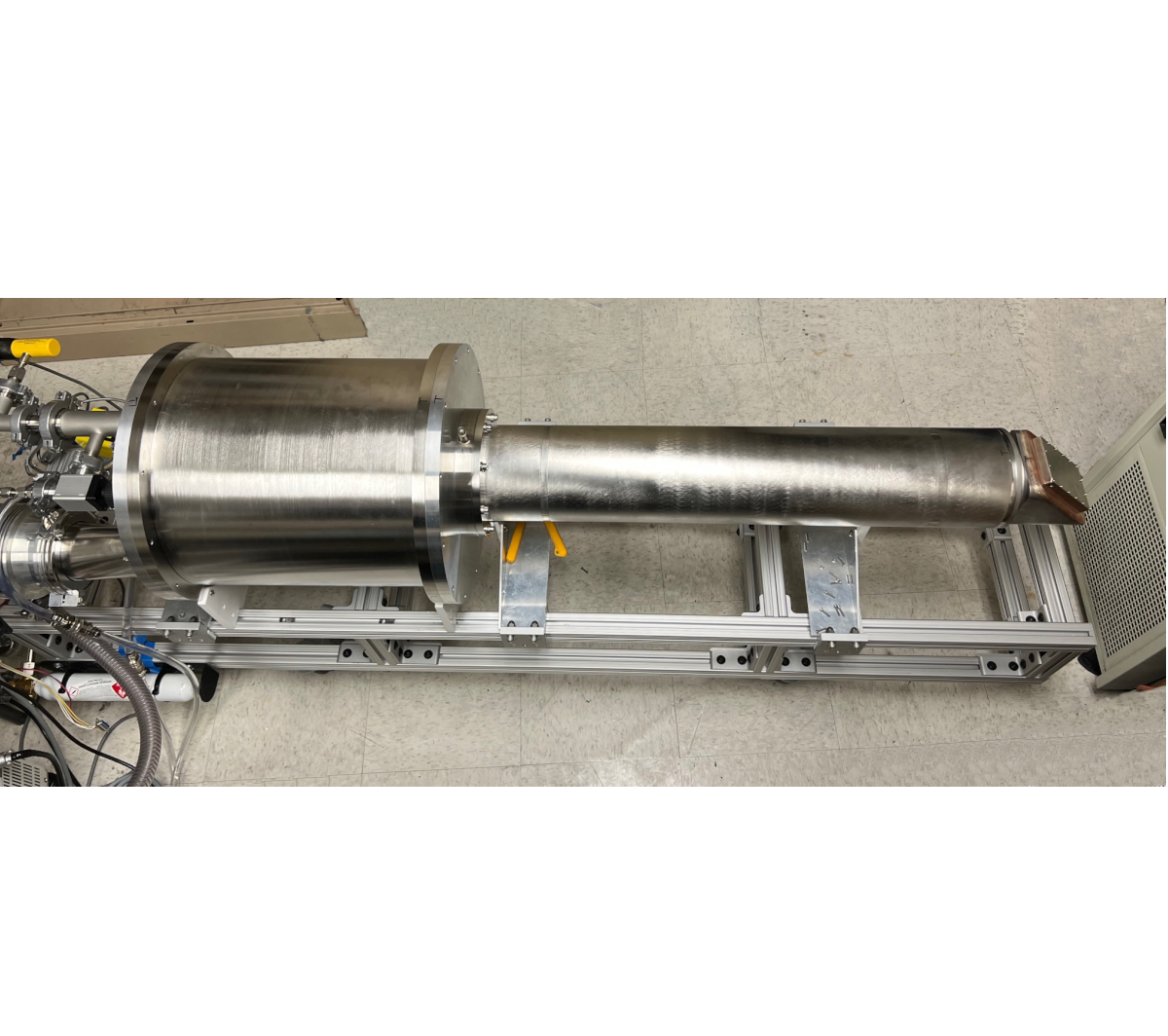

	D-D, surface target, actively pumped, extra long (4ft) target tube Date: 2024	Yield: Up to 10⁹ n/s D-D Flux: 10⁷ n/s/cm² Target tube length: 1m

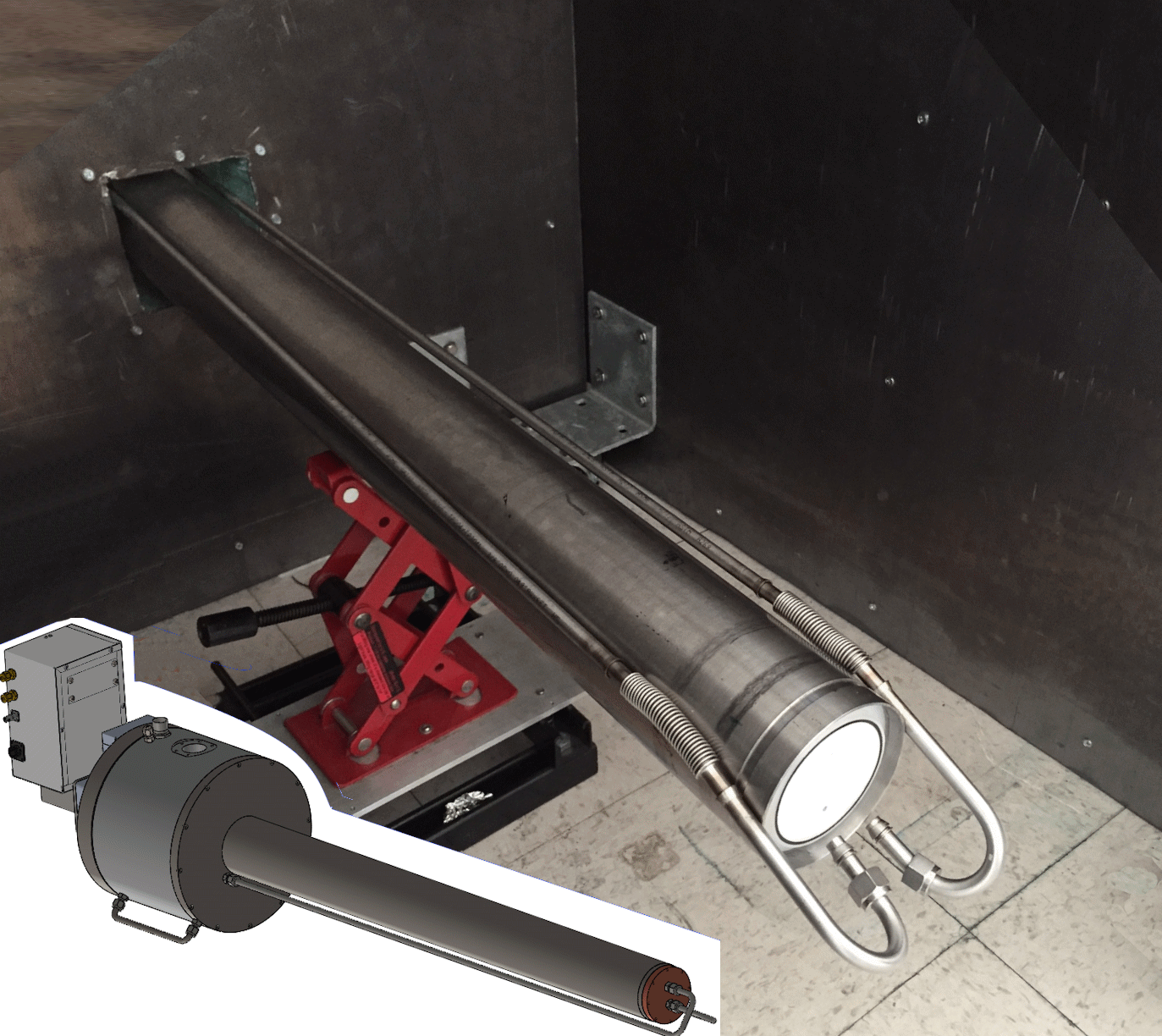

	D-D, surface target, sealed, long target tube Date: 2022	Yield: Up to 4.8x10⁸ n/s D-D Flux: Up to 7.86x10⁷ n/s/cm² D-T (at 0.7677 inches) and 7.6x10⁷ n/s/cm² D-T (at 0.25 inches - on target) Spot size: 12mm
	D-T, surface target, sealed, long target tube Date: 2022	Yield: Up to 1.45x1010 n/s D-T Flux: Up to2.36x10^8 n/s/cm^2 D-T (at 0.7677 inches) and 2.23x10^9 n/s/cm^2 D-T (at 0.25 inches - on target) Spot size: 12mm
	4 thermal generator system Date: 2018	Yield: 4x10¹⁰ n/s D-T Flux: >10⁸ n/s/cm² Spot size: 12mm
	4-beam generator system Date: 2016	Yield: 2x10¹⁰ n/s D-T Flux: 5x10⁷ n/s/cm² Spot size: 12mm

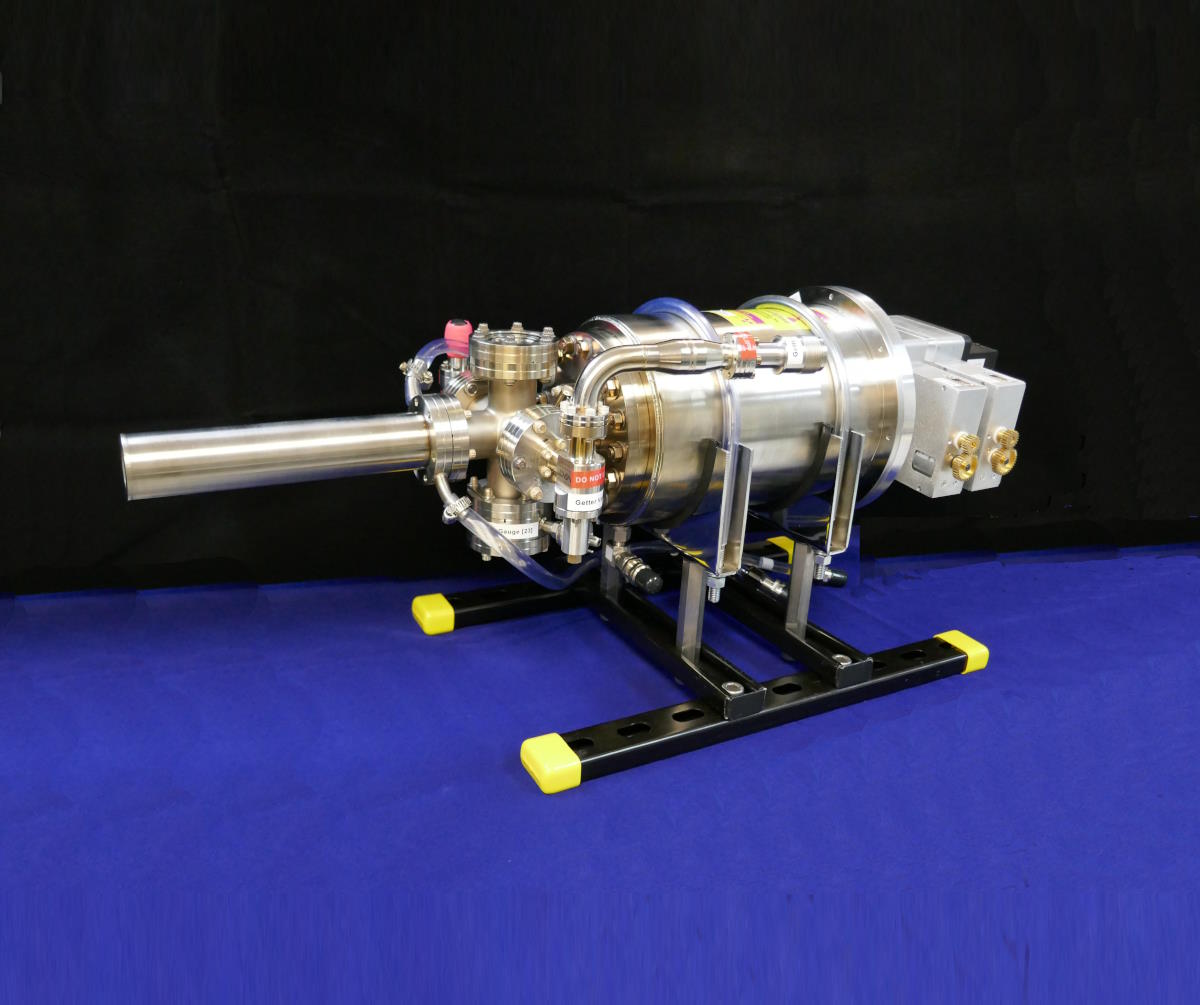

	D-D/epithermal, surface target, sealed, long target tube Date: 2014	Yield: 4x10⁸ n/s D-D Spot size: 20mm

It is very common for Adelphi to tailor generators to a customer’s needs, for example by excluding or minimizing certain material elements from a design, or modifying the shape of a design to fit into an existing experiment. Custom shielding, tailored to your specific needs, is also available from Adelphi Technology.

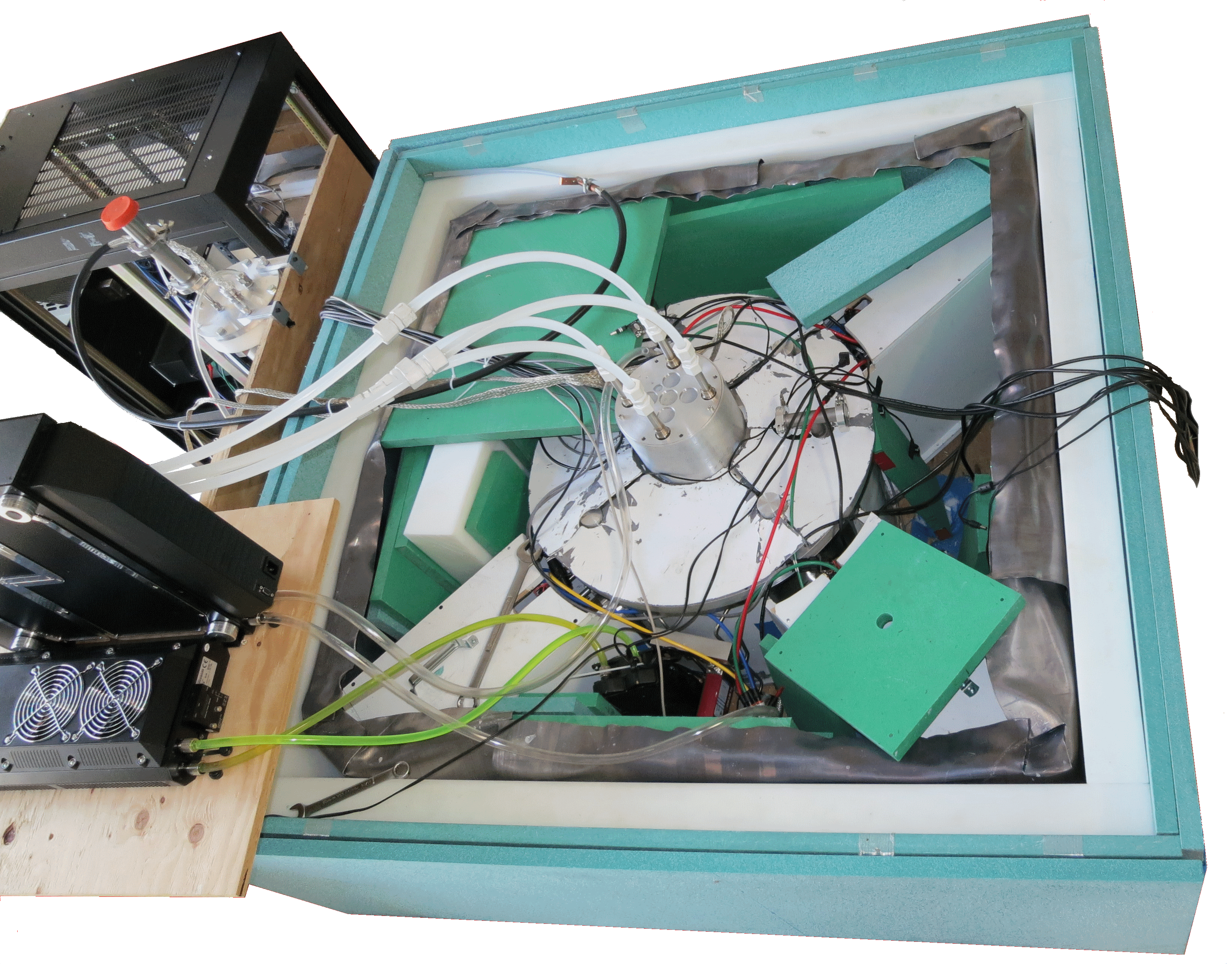

Custom 4-generator system

Custom 4-beam generator
